Through Asterisk 1.8x Voip Module 4 Internally Assembled SIM Cards

I'm Online Chat Now

Through Asterisk 1.8x Voip Module 4 Internally Assembled SIM Cards

Through Asterisk 1.8x Voip Module 4 Internally Assembled SIM Cards
Through Asterisk 1.8x Voip Module 4 Internally Assembled SIM Cards

Large Image :  Through Asterisk 1.8x Voip Module 4 Internally Assembled SIM Cards

Product Details:
Place of Origin: China
Brand Name: ZYCOO
Certification: CE / FCC / RoHS
Model Number: 4WCDMA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Delivery Time: 5-10 business days
Payment Terms: L/C, T/T, D/P
Supply Ability: Zycoo Co., Ltd.

Through Asterisk 1.8x Voip Module 4 Internally Assembled SIM Cards

Description
Dimensions: 88.5 X 132 Mm Temperature: 0°C ~ 40°C
Humidity: 5% ~ 95% Non-Condensing
High Light:

Asterisk 1.8x Voip Module

,

SIM Cards Voip Module

,

Voip Module Asterisk 1.8x

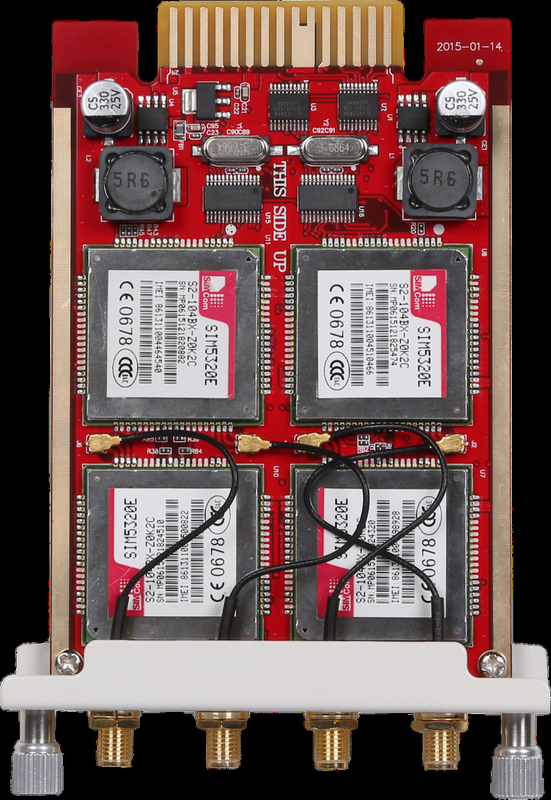

4WCDMA Telephony Trunk Interface Module



Designed with the SIM5320 series module for the global market, SIM5320 is Dual-Band WCDMA and Quad-band GSM engine that works on frequencies UMTS 850MHz, UMTS 900MHz, UMTS 1900MHz, UMTS 2100MHz, GSM 850MHz, EGSM 900MHz, DCS 1800MHz and PCS 1900MHz.



Model No.

4WCDMA

Number of channels per module

4

External antennas

4

SIM Cards

4 total
4 internally assembled

External power supply required

No

Interoperable modules

4FXO
4FXS
2FXOS
2/4 GSM
4BRI
1E1/T1(PRI)

Supported protocols

Voice (2G/3G)

Accessibility

Through Asterisk 1.8x



Through Asterisk 1.8x Voip Module 4 Internally Assembled SIM Cards 0







QA



Q: Can ZYCOO's software be customized?
A: Yes, but there is a corresponding extra charge.

Q: Does ZYCOO support OEM/ODM?
A: Yes, ZYCOO also offers various types of embedded hardware boards for ODM and OEM customers.

Q: How do I purchase? Where can I get a quote?
A: Please contact the ZYCOO sale department at zycoo@zycoo.com for quotes or additional information.

Q: What is the geographic availability For ZYCOO products?
A: Zycoo is globally available. Contact us today to get more information.

Q: For additional support or answers to questions not covered in this FAQ, who should I contact?
A: Please contact us at zycoo@zycoo.com






WHY CHOOSE US



  • ZYCOO, is the leading developer and manufacturer of IP telephony devices and related systems, devoting itself over the past years to R&D powerful and scalable voice over IP (VoIP) solutions that mainly serve the SME market.



  • With the deployment of distribution channels and branch offices in Czech Republic and UAE, ZYCOO products and solutions have been deployed in more than 100 countries and trusted by over 100,000 satisfied customers. Customers can enjoy direct sales, tech-support, training, and after-sale service while using ZYCOO products and solutions.



  • Besides branded product, ZYCOO also offers various types of embedded hardware boards for ODM and OEM, as well as software modification or white-label. ZYCOO always keeps pace with the innovative VOIP technology and provides cost-effective products and services to customers.
