Product Details:
|
| Rated Power: | 8Ω 10W | Flasher: | 2 |
|---|---|---|---|
| Clock Display: | 1 | Color: | White |
| Casing: | Cold Rolled Steel Finished In Textured White Epoxy | Coverage Pattern: | 90°H 50°V 30m^2 |
| Max Sound Pressure Level: | 101dB | Sensitivity: | 91dB/1m/1W |
| Weight: | 3.15kg (6.95lb) | Dimension: | 280*280*65mm |
| Mounting Method: | Wall Surface Mounted | ||
| High Light: | Clock Display Ip Network Pa System,Ip Network Pa System Surface Mount |
||

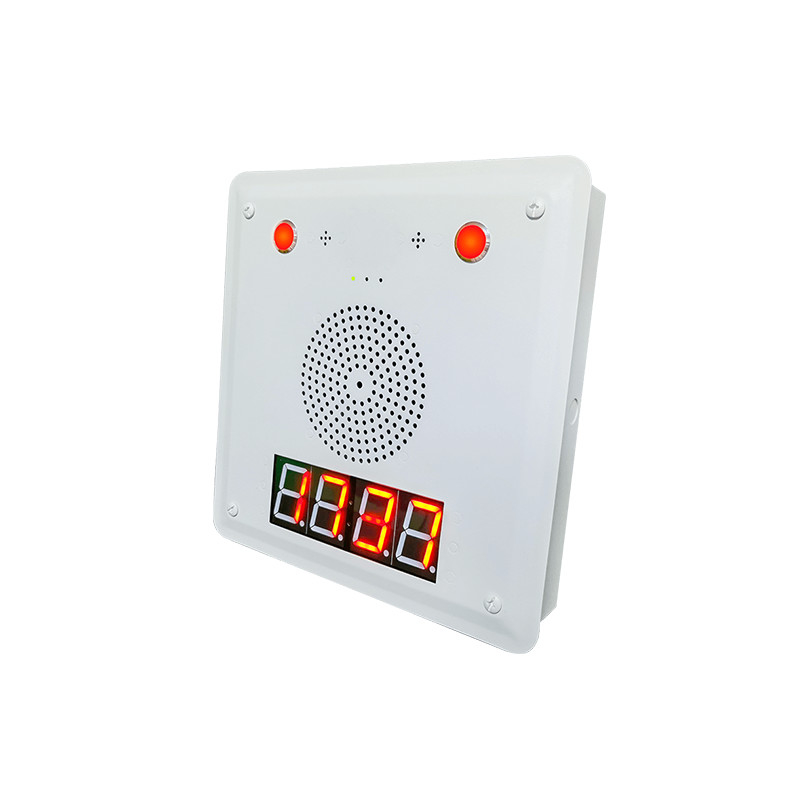

ZYCOO Network Square Speaker SQ10-T Time is a comprehensive, high-performance, surface-mounted SIP-enabled speaker. The LED flashers located on the top surface of the speaker can be used to alert room occupants of an incoming audio message or emergency notices. With the built-in microphone, the operators can deliver two-way communication at any time, anywhere. The LED displays time and eliminates the need for a separate clock system, perfect to use in scenarios like terminal stations, classrooms, and offices.
Audio
320Kbps superior quality MP3 music files and streamed mediamusic supported. Click to play music, immediate announcement,
intercom, schedule music and paging are all supported.
Specifications
| Speaker | |
|---|---|
|
Speaker Size |
4.5'' |
|
Sensitivity |
91dB/1m/1W |
|
Max sound pressure level |
101dB |
|
Amplifier |
Built-in Class D Amplifier |
|
Rated power |
8Ω 10W |
|
Frequency range |
70Hz – 20KHz |
|
Coverage Pattern |
90°H 50°V 30m² |
|
Acoustics |
Mono |
|
Audio |
|
|---|---|
|
Audio codecs |
G.722, G.711 A-law, G.711 U-law, Opus |
|
Audio streaming |
MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or Stereo |
| Administration | |
|---|---|
|
Configuration |
Web interface or auto-provisioning server |
|
Provisioning method |
MQTT IoT Protocol |
| Mechanical Properties | |
|---|---|
|
Memory |
128MB RAM, 256MB Flash |
|
Power input |
PoE+ or External 24V DC |
|
Casing |
Cold rolled steel finished in textured white epoxy |
|
Color |
White |
|
Weight |
3.15kg(6.95lb) |
|
Dimension |
280*280*65mm |
|
Mounting method |
Wall-mounted |
|
SYS Light Status |
On/Off/Flash |
|
PWR Light Status |
On/Off/Flash |
| Environmental | |
|---|---|
|
Installation environment |
Indoor |
|
Operating temperature |
-20°C - 50°C (-4°F - 122°F) |
|
Storage temperature |
-40°C - 70°C (-40°F - 158°F) |
|
Humidity |
10% - 95% RH Non-condensing |
QA
Q: Can ZYCOO's software be customized?
A: Yes, but there is a corresponding extra charge.
Q: Does ZYCOO support OEM/ODM?
A: Yes, ZYCOO also offers various types of embedded hardware boards for ODM and OEM customers.
Q: How do I purchase? Where can I get a quote?
A: Please contact the ZYCOO sale department at zycoo@zycoo.com for quotes or additional information.
Q: What is the geographic availability For ZYCOO products?
A: Zycoo is globally available. Contact us today to get more information.
Q: For additional support or answers to questions not covered in this FAQ, who should I contact?
A: Please contact us at zycoo@zycoo.com
