Product Details:
|
| Rated Power: | DC: 8Ω 30W Or PoE: 8Ω 18W | IP Rating: | IP65 Waterproof |
|---|---|---|---|
| Color: | Grey | Casing: | Surface-treated 1060 Aluminium |
| Coverage Pattern: | 50°H 50°V, Effective Distance 70m | Max Sound Pressure Level: | 117dB |
| Sensitivity: | 105dB/1m/1W | Weight: | 2.68KG (5.9lb) |
| Dimension: | Ø276.07 X 276.6 Mm (10.87 X 10.89 In) | Mounting Method: | Wall/pole Mounted |
| High Light: | PoE IP Network Speaker,SIP IP Network Speaker,SIP Weatherproof Horn Speaker |
||
Waterproof Outdoor Horn Speaker with PoE supported

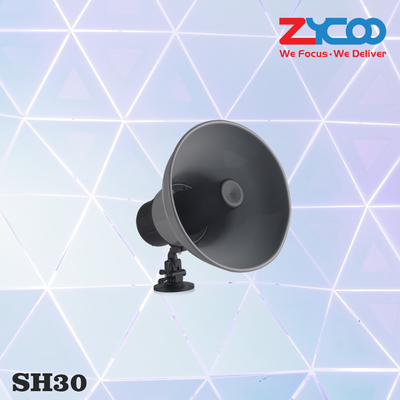

ZYCOO SH30 is a SIP-enabled horn speaker which provides an exceptionally clear and intelligible voice for SIP paging, notification/tone broadcasting, and streaming background music. It is suitable to be deployed in outdoor and other open spaces for public notifications and public safety purposes.
Specifications
| Speaker | |
|---|---|
|
Speaker component |
2" midrange driver unit |
|
Sensitivity |
105dB/1m/1W |
|
Max sound pressure level |
117dB |
|
Amplifier |
Built-in 30W Class D Amplifier |
|
Rated power |
DC: 8Ω 30W or PoE: 8Ω 18W |
|
Frequency range |
400Hz – 8KHz |
|
Coverage Pattern |
50°H 50°V, effective distance 70m |
|
Acoustics |
Mono |
|
Audio |
|
|---|---|
|
Audio codecs |
G.722, G.711 A-law, G.711 U-law, Opus |
|
Audio streaming |
MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or Stereo |
| Administration | |
|---|---|
|
Configuration |
Web interface or auto-provisioning server |
|
Provisioning method |
MQTT IoT Protocol |
| Mechanical Properties | |
|---|---|
|
Memory |
128MB RAM, 256MB Flash |
|
Power input |
PoE IEEE802.3at/DC24V2A |
|
Casing |
Surface-treated 1060 aluminium |
|
IP Rating |
IP65 |
|
Color |
Grey |
|
Weight |
2.68KG (5.9lb) |
|
Dimension |
Ø276.07 x 276.6 mm (10.87 x 10.89 in) |
|
Mounting method |
Wall/pole mounted |
| Environmental | |
|---|---|
|
Installation environment |
Outdoor |
|
Operating temperature |
-40°C - 70°C (-40°F - 158°F) |
|
Storage temperature |
-40°C - 70°C (-40°F - 158°F) |
|
Humidity |
10% - 95% RH Non-condensing |
