Product Details:
|
| Network Interface: | 10/100Mbps, Support PoE IEEE 802.3af/at | Power Input:: | PoE IEEE 802.3 At Or DC 12V-2A |
|---|---|---|---|
| Casing: | Corrosion-resistant Aluminum | Color: | Silver |
| Weight: | 500g | Dimension: | 162mm*100mm*44mm |
| Mounting Method: | Suace Or Flush Mounted | ||
| High Light: | Ei Series SIP Based Intercom,SIP Based Intercom four models,SIP Based Intercom Aluminum Casing |
||

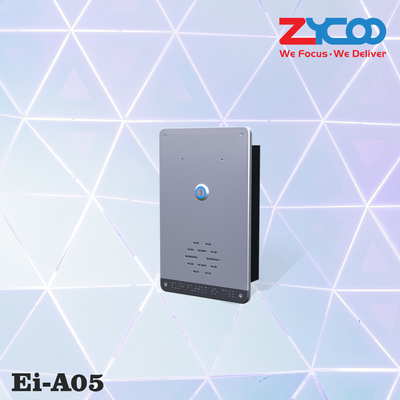

Ei-A05 Support PoE Safety Intercom with single button
Ei Series Safety Intercom is available in four models designed to address the needs and requirements of various applications and installation types. All models deliver full-duplex communication and secure access control for your VoIP system. Ei Series is PoE/PoE+ supported, making it easy to connect to the local area networks from your PoE switch with a CAT 5/6 cable. No extra power supply is required. Each model has been equipped with one or more programmable dial buttons, and any desired number can be preconfigured. Users can talk with the target number in hands-free mode by pressing the button. All models are equipped with digital level input for the connection of sensors and relay switch that can be used to connect a door magnet or alarm light. The action (open/close the door) of the relay switch can be controlled by the DTMF signal, intercom call status, sensor input signal, and audio-out option to connect with an active speaker or power amplifier for sound expansion. In addition to working with ZYCOO IP Audio Center, all Ei Series Network Safety Intercoms can be connected with external IP cameras for video linkage purposes
Specifications
| Ei-V05 | Ei-A05/Ei-D05/Ei-W05 | |
| Speaker | ||
| Drive Unit | Φ40 full frequency drive unit | |
| Sensitivity | 96±3dB/1M/1W | |
| Distortion | <1% | |
| Amplifier | 5W Single Channel D-class | |
| Rate Power | 8Ω 5W | |
| Frequency Range | 100Hz – 20KHz | |
| Acoustics | Mono | |
| Microphone | ||
| Microphone | -36±2 dB | |
| Audio Compression | ||
| Audio Codecs | G.722, G.711 A-law, G.711 U-law, Opus | |
| Music Streaming | MP3 sampling rate 8-48KHz, bit rate 64-320kbps, mono or stereo | |
| Video | ||
| Camera | 1920*1080@20fps, 1280*720@25fps | N/A |
| Video Codec | H.264 | N/A |
| Network | ||
| Network Interface | 10/100Mbps, Support PoE IEEE 802.3at | 10/100Mbps, Support PoE IEEE 802.3af/at |
| Protocols | SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP,RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH | |
| Administration | ||
| Configuration | Web interface or auto provisioning server | |
| Provisioning method | MQTT IoT Protocol | |
| Mechanical Properties | ||
| Memory | 128MB RAM, 256MB Flash | |
| Power Input | PoE IEEE802.3 at or DC 12V-2A | PoE IEEE802.3 af/at or DC 12V-1A |
| Material | Corrosion-resistant aluminum | |
| Color | Sliver | |
| Weight | ||
| Dimension | 162*100*44(mm) | |
| Mounting Methods | Surface or Flush mounted | |
| Environmental | ||
| Installation | Indoor/Outdoor | |
| Operating Temperature | -20℃ - 50℃ (-4℉ - 122℉) | |
| Storage Temperature | -40℃ - 70℃ (-40℉ - 158℉) | |
| Humidity | 10% - 95% RH Non-condensing | |
| Approvals | ||
| Approvals |
EN IEC 62368-1:2020+A11:2020 FCC Part 15B |
|
QA
Q: Can ZYCOO's software be customized?
A: Yes, but there is a corresponding extra charge.
Q: Does ZYCOO support OEM/ODM?
A: Yes, ZYCOO also offers various types of embedded hardware boards for ODM and OEM customers.
Q: How do I purchase? Where can I get a quote?
A: Please contact the ZYCOO sale department at zycoo@zycoo.com for quotes or additional information.
Q: What is the geographic availability For ZYCOO products?
A: Zycoo is globally available. Contact us today to get more information.
Q: For additional support or answers to questions not covered in this FAQ, who should I contact?
A: Please contact us at zycoo@zycoo.com
