8Ω 2x10W Sip Paging System Analog Sounds For Background Music

I'm Online Chat Now

8Ω 2x10W Sip Paging System Analog Sounds For Background Music

8Ω 2x10W Sip Paging System Analog Sounds For Background Music
8Ω 2x10W Sip Paging System Analog Sounds For Background Music
8Ω 2x10W Sip Paging System Analog Sounds For Background Music 8Ω 2x10W Sip Paging System Analog Sounds For Background Music

Large Image :  8Ω 2x10W Sip Paging System Analog Sounds For Background Music

Product Details:
Place of Origin: China
Brand Name: ZYCOO
Certification: EN 55032:2015, EN 55035:2017, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 62368-1:2014+A11:2017, FCC Part 15B Class A
Model Number: X10
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Zycoo Co., Ltd.
Delivery Time: 5-10 business days
Payment Terms: L/C, T/T, D/P
Supply Ability: 5000pcs/month

8Ω 2x10W Sip Paging System Analog Sounds For Background Music

Description
Power Input: DC 12V-3A Or PoE IEEE 802.3at Ethernet: ETH0+ETH1, 10/100Mbps, ETH0 With PoE IEEE 802.3at Enabled
Call Button: Support 2 Call Buttons Digital Level Output: N/A
Digital Level Input: 5V Max Dry Contact: NO/NC Contacts, Max AC 125V-1A, DC 60V-1A
Weight: 303g Dimension: 153*76*33mm
Working Environment: -20°C ~ +50°C Storage Environment: -40°C ~ +75°C
High Light:

2x10W Sip Paging System

,

Analog Sounds Sip Paging System

,

Sip Paging System Background Music

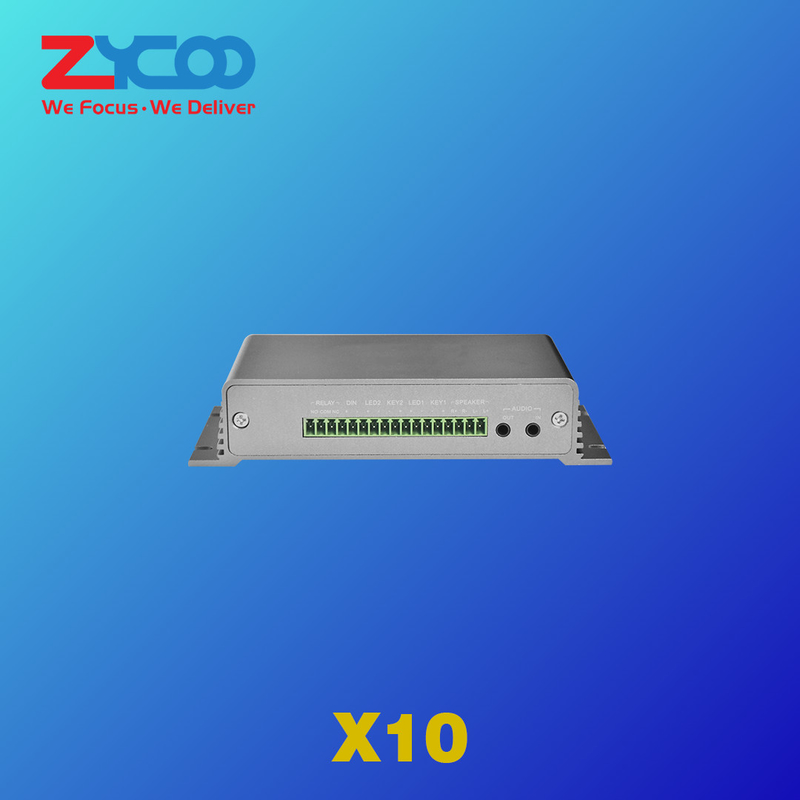

Zycoo X10 SIP-enabled Zone Paging Controller Gateway​



ZYCOO X10 SIP paging gateway is a SIP-enabled multifunctional IP audio device dedicated to industry users. It can convert voice streams from a SIP paging system or IP PBX system to analog sounds for background music, public addresses, intercom, etc. Based on the compact hardware design, open standard SIP protocol support, rich functionality, and high performance. Industry users can customize the X10 SIP paging gateway into any desired form of intercom devices or paging speakers, which can be widely used for smart and safe city applications to increase the efficiency of communication and information sharing, and as a result, to improve public safety and citizen welfare.



8Ω 2x10W Sip Paging System Analog Sounds For Background Music 0



8Ω 2x10W Sip Paging System Analog Sounds For Background Music 1



Specifications

Interfaces
Amplifier Output

2x10W, 8Ω (4 pins)

Headset Output

3.5mm Jack

Microphone

3.5mm Jack

Call button Support 2 call buttons (switch button)
Call button LED Support 2 call button LED indicators
Digital level output N/A

Digital level input

5V Max

Dry Contact

NO/NC contacts, max AC 125V-1A, DC 60V-1A

Power Input

DC 12V-3A Jack

Volume Control

VOL+ and VOL-, press both to announce IP address

Ethernet

ETH0+ETH1, 10/100Mbps, ETH0 with PoE IEEE 802.3at enabled



8Ω 2x10W Sip Paging System Analog Sounds For Background Music 2



Audio

Audio Codecs

G.722, G.711 A-law, G.711 U-law, Opus

Music Streaming

MP3 sampling rate 8 – 48KHz, bit rate 64 – 320kbps, mono or Stereo



Protocols

Protocols

SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH



Mechanical



Processor

ARM Cortex-A35

RAM

128MB DDR3

Storage

128MB SLC Flash

Color

Gray

Weight

303g

Dimension

153*76*33mm



Environmental

Operating temperature

-20°C - 50°C (-4°F - 122°F)

Storage temperature

-40°C - 70°C (-40°F - 158°F)

Humidity

10% - 95% RH Non-condensing



QA



Q: Can ZYCOO's software be customized?
A: Yes, but there is a corresponding extra charge.

Q: Does ZYCOO support OEM/ODM?
A: Yes, ZYCOO also offers various types of embedded hardware boards for ODM and OEM customers.

Q: How do I purchase? Where can I get a quote?
A: Please contact the ZYCOO sale department at zycoo@zycoo.com for quotes or additional information.

Q: What is the geographic availability For ZYCOO products?
A: Zycoo is globally available. Contact us today to get more information.

Q: For additional support or answers to questions not covered in this FAQ, who should I contact?
A: Please contact us at zycoo@zycoo.com






WHY CHOOSE US



  • ZYCOO, is the leading developer and manufacturer of IP telephony devices and related systems, devoting itself over the past years to R&D powerful and scalable voice over IP (VoIP) solutions that mainly serve the SME market.



  • With the deployment of distribution channels and branch offices in Czech Republic and UAE, ZYCOO products and solutions have been deployed in more than 100 countries and trusted by over 100,000 satisfied customers. Customers can enjoy direct sales, tech-support, training, and after-sale service while using ZYCOO products and solutions.



  • Besides branded product, ZYCOO also offers various types of embedded hardware boards for ODM and OEM, as well as software modification or white-label. ZYCOO always keeps pace with the innovative VOIP technology and provides cost-effective products and services to customers.
